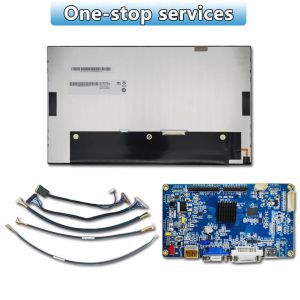

    FPD-QHD TFT Controller Board Support 2K TFT LCD Display Max To 2560x1600

    FPD-QHD TFT Controller Board Support 2K TFT LCD Display Max to 2560x1600


    Description


    Designed for 2K TFT LCD monitors. The FPD-QHD controller is a multi interface LCD AD board which support VGA DVI HDMI Displayport input, 4 channels LVDS output signals.
    Base on the Hd signal processing chip ,and high quality components,the controller gave us a strong advantage in display performance & functions.


    Support max resolution : 2560x1600,2560x1440,260x1080,2560x2048
    * Automatic photosensitive control
    * Support Flip, Rotate
    * Support Frame Convert
    * Support Gray Display
    * Built-in sound amplifier 2 x8w
    * compatible with HDMI 1.3and Displayport V1.2


    Technical Parameters


    ProjectDescribe
    Product nameFPD-QHD
    Chip solutionMstar
    Support maximum resolution2560*2048
    Support size~82"
    Interface signal1 VGA input, 1 HDMI input, 1 DVI input, 1 DP input, 2 * 28w stereo power amplifier
    Input power+12V single power supply. It is recommended to use a power adapter of 54W or above
    Function3M LCD driver board: it can support black and white display, image up and down flip, very good gray scale, OSD display and control, multi language, DICOM brightness standard, 2560 * 10802560 * 14402560 * 16002048 * 1536 and other types of QHD LCD screen.
    LCD interface4-channel 10bit LVDS
    Storage conditionsThe temperature is - 40 ℃ to 80 ℃; Relative humidity 5% to 85%
    Working conditionsTemperature - 20 ℃ to 70 ℃; Relative humidity 20% to 80%
    Size140*120*20mm
    Applicable occasionsIndustrial control display, medical display, military display and other special occasions, LCD driver board, wide temperature LCD
