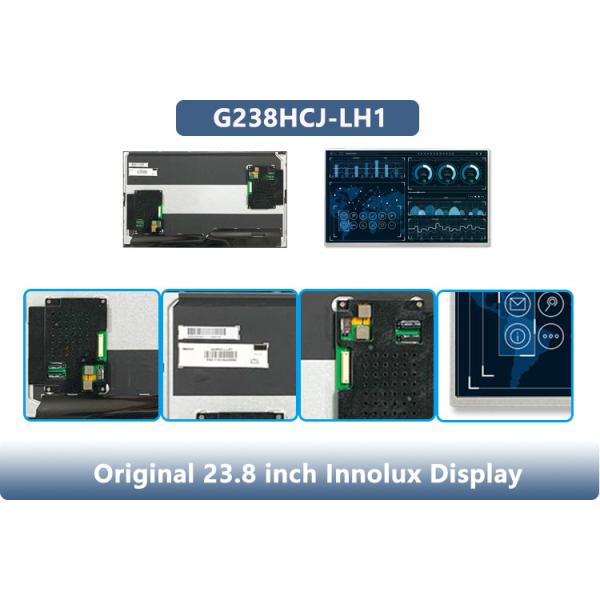

23.8 inch INNOLUX G238HCJ-LH1 LCD Display LVDS 30 Interface
527.04*296.46 Active Area Wide Viewing Angles
Product Information:
| Brand | Innolux |
| Model P/N | G238HCJ-LH1 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | 530.2(W)×299.6(H) mm |
| Outline Size | 543(W)×317.4(H) ×19.43(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Display Mode | 14/11 (Typ.)(Tr/Td) |
| AAS, Normally Black, Transmissive | Display Colors |
| Best View on | 16.7M 74% NTSC |
| Symmetry | Lamp Type |
| Response Time | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 2.82Kgs (Typ.) |
| Application | Industrial; Monitor |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0±0.5V |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 80 °C |
Features:
This particular INNOLUX panel features impressive specs that make
it a top choice for many different uses. With a luminance of 1000
nits, this display is incredibly bright and easy to see, even in
challenging lighting conditions. This makes it an ideal choice for
outdoor use, or for use in environments where glare or other types
of interference might make it difficult to see a traditional
display.
In addition to its impressive brightness, this INNOLUX panel also
features an IPS viewing direction. IPS, or in-plane switching, is a
type of display technology that allows for wider viewing angles and
more accurate colors. This makes it a great choice for use in
situations where color accuracy is important, such as in graphic
design, photography, or video editing applications.
The active area of this INNOLUX panel is 527.04 x 296.46, meaning
that it has a large, spacious display area that's perfect for a
variety of different uses. Whether you're using it for work or for
play, you'll appreciate the extra space that this display provides.
When it comes to viewing angles, this INNOLUX panel doesn't
disappoint. It has a viewing angle of 88/88/88/88, which means that
it provides a clear, easy-to-see image no matter where you're
standing or sitting. Whether you're using it in a public setting or
in a private one, you'll appreciate the flexibility that this
display provides.
Finally, this INNOLUX LCD display is available in a convenient 23.8
inch size. This makes it an ideal choice for a variety of different
uses, whether you're looking to use it as a standalone monitor or
as part of a larger display setup. No matter how you use it, you'll
appreciate the quality and reliability that comes with an INNOLUX
panel.
Applications:
The INNOLUX G238HCJ-LH1 is an LVDS 30 interface display with an
active area of 527.04*296.46. It boasts a high contrast ratio of
1000, making it perfect for displaying clear and crisp images, even
in low light conditions. With an operating temperature range of
-30℃～80℃, this display can withstand extreme temperatures, making
it suitable for use in harsh environments.
With a LED lifetime of 50K hours, the INNOLUX G238HCJ-LH1 LCD
Display is built to last. Whether you need it for medical
equipment, industrial machinery, or any other application that
requires a reliable display, this product is sure to meet your
needs.
Support and Services:
INNOLUX provides technical support and services for their LCD
display products, including:
- Product installation assistance
- Product troubleshooting and problem diagnosis
- Product repair and replacement services
- Product maintenance services
- Product upgrade and customization services
INNOLUX also offers comprehensive product documentation and user
manuals to assist with product setup and operation.
Packing and Shipping:
Product Packaging:
- The INNOLUX LCD Display will be packed in a sturdy cardboard box.
- The display will be placed in a foam cutout to prevent any damage
during shipping.
- All necessary cables and accessories will be included in the
package.
- The package will be taped securely and labeled clearly with the
recipient's address and contact information.
Shipping:
- The INNOLUX LCD Display will be shipped via a trusted courier
service.
- The package will be insured and tracked for added security.
- The estimated delivery time will be communicated to the recipient.
- The recipient will be notified via email or text message once the
package has been shipped.
